| Generator housing | Aluminum (anodized, black surface) |
| W x D x H | 177.5 x 372 x 137 mm (7.0 x 14.65 x 5.39 inch) |
| Supply V / Hz / PH | 380 - 440 / 50 - 60 / 3 |
| Power | 2 x 5000 Watts (max.) |
| Certifications |
![]() |

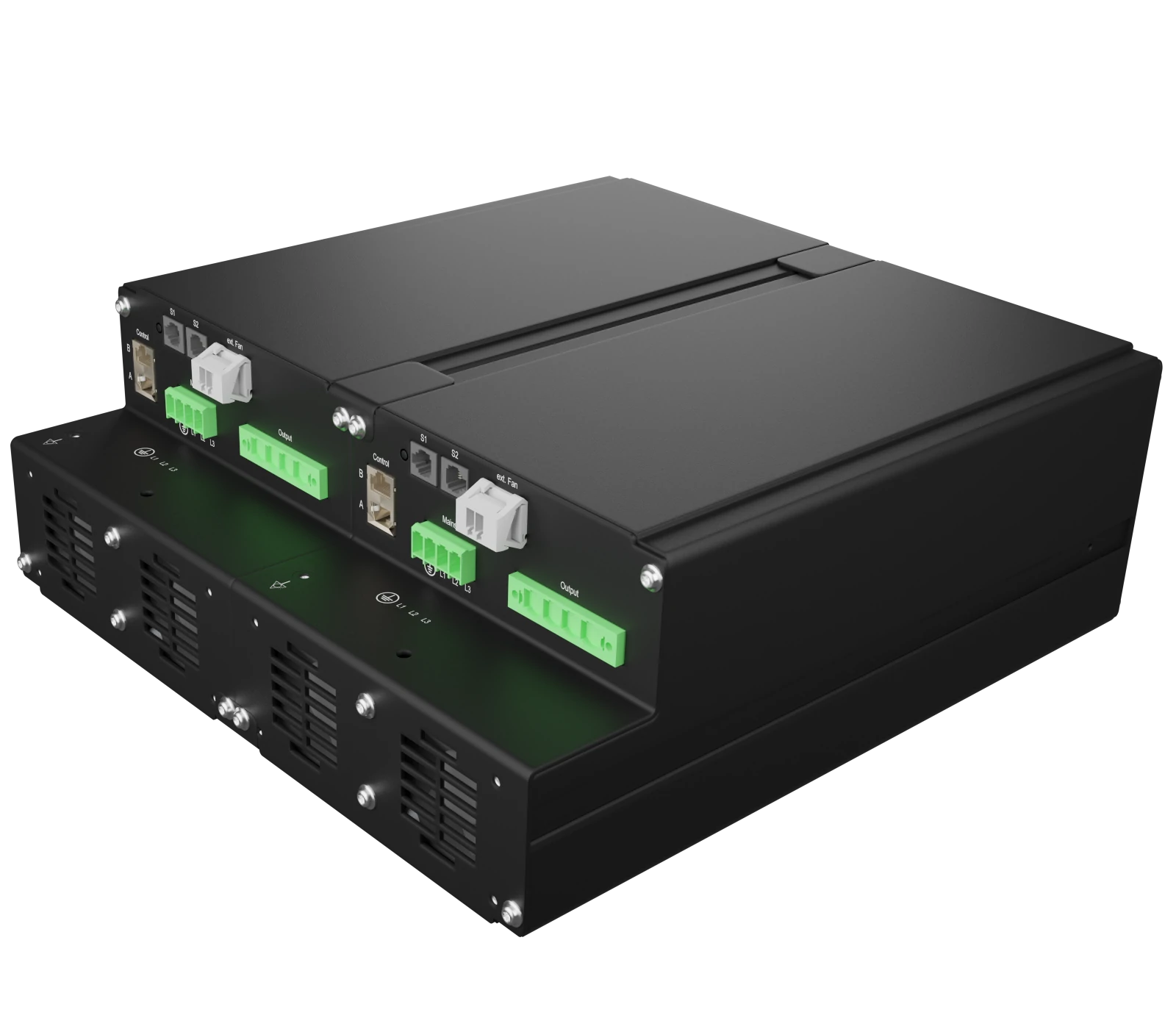

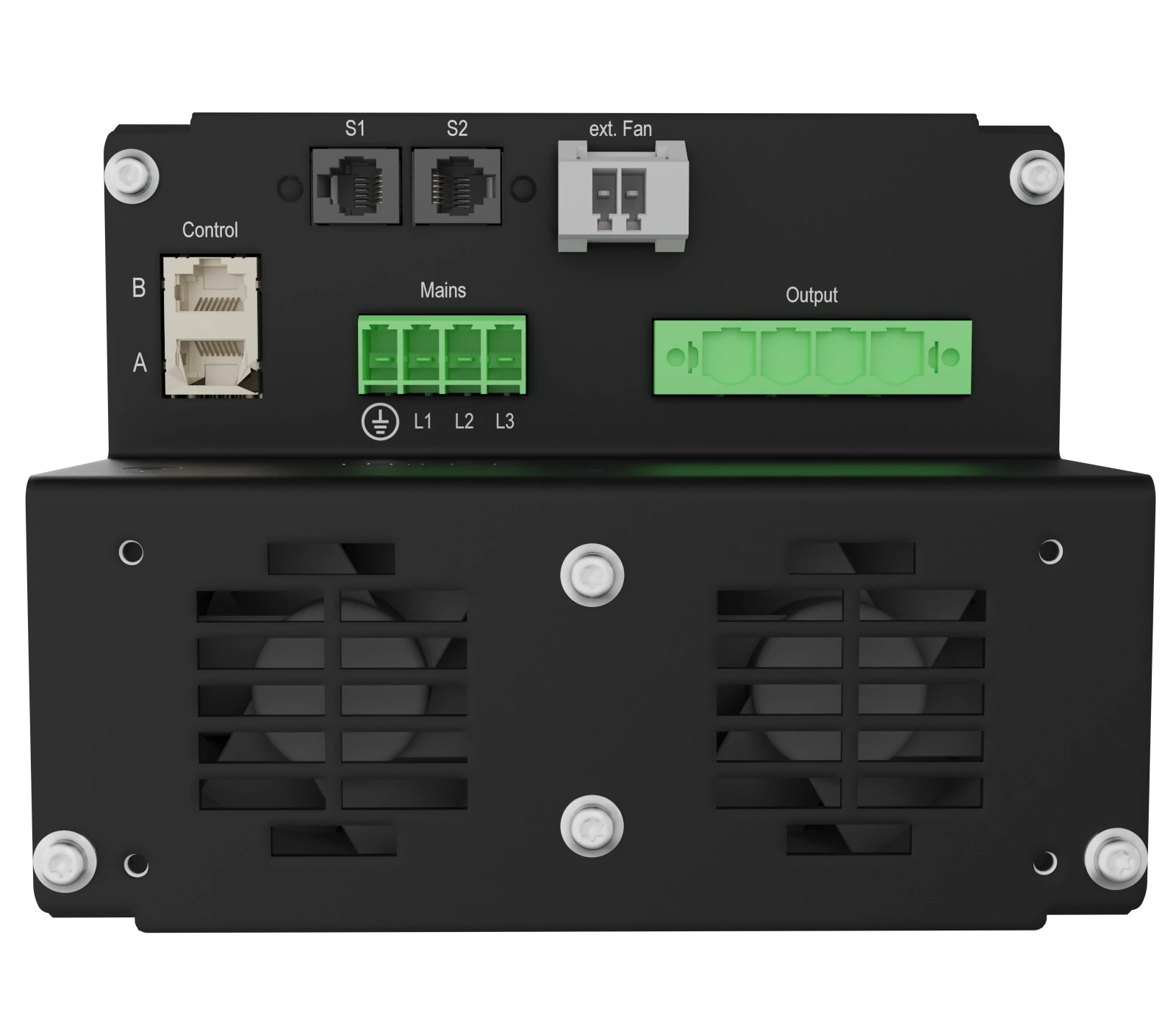

The induction generator of the modular system for induction cooking.
|
RTCSmp
Continuous temperature measurement at the bottom of the pan with our RTCSmp technology (Real Time Temperature Control System, multi-point) |
|
Overheating protection
The reliable overheat protection for the cookware extends the lifespan of both the induction appliance and the cookware. |
|
Constant power transfer
Constant power transfer throughout the entire cooking period for optimal results. |
|
Direct heat transfer
Comfortable cooking without heating the kitchen environment thanks to direct heat transfer from the cooktop to the pan via induction. Particularly energy efficient and very short heat-up times. |
|
Easy to clean
No burning of food residues on the Ceran® glass thanks to the cool surface. |
|
Wide pan compatibility
Very wide pan compatibility thanks to innovative variable frequency. |
|
Exceptionally robust
Exceptionally robust and developed for continuous use in food service operations |
|
Power reduction
Option to easily reduce the maximum power output setting from 100 % to down to 25 % |
|
Very fast pot / pan detection
Thanks to the fast pot / pan detection, the power output starts immediately when the pan is placed on the cooktop. |
|
Warranty
Warranty: 2 years on parts |
|
Connectivity
Extendable with a Modbus IoT interface to take full advantage of the Connectivity. |
|
InnovativElectronicElements
The high efficiency of the InnovativeElectronicElements minimizes heat load on the electronics, significantly extending service life. |
|

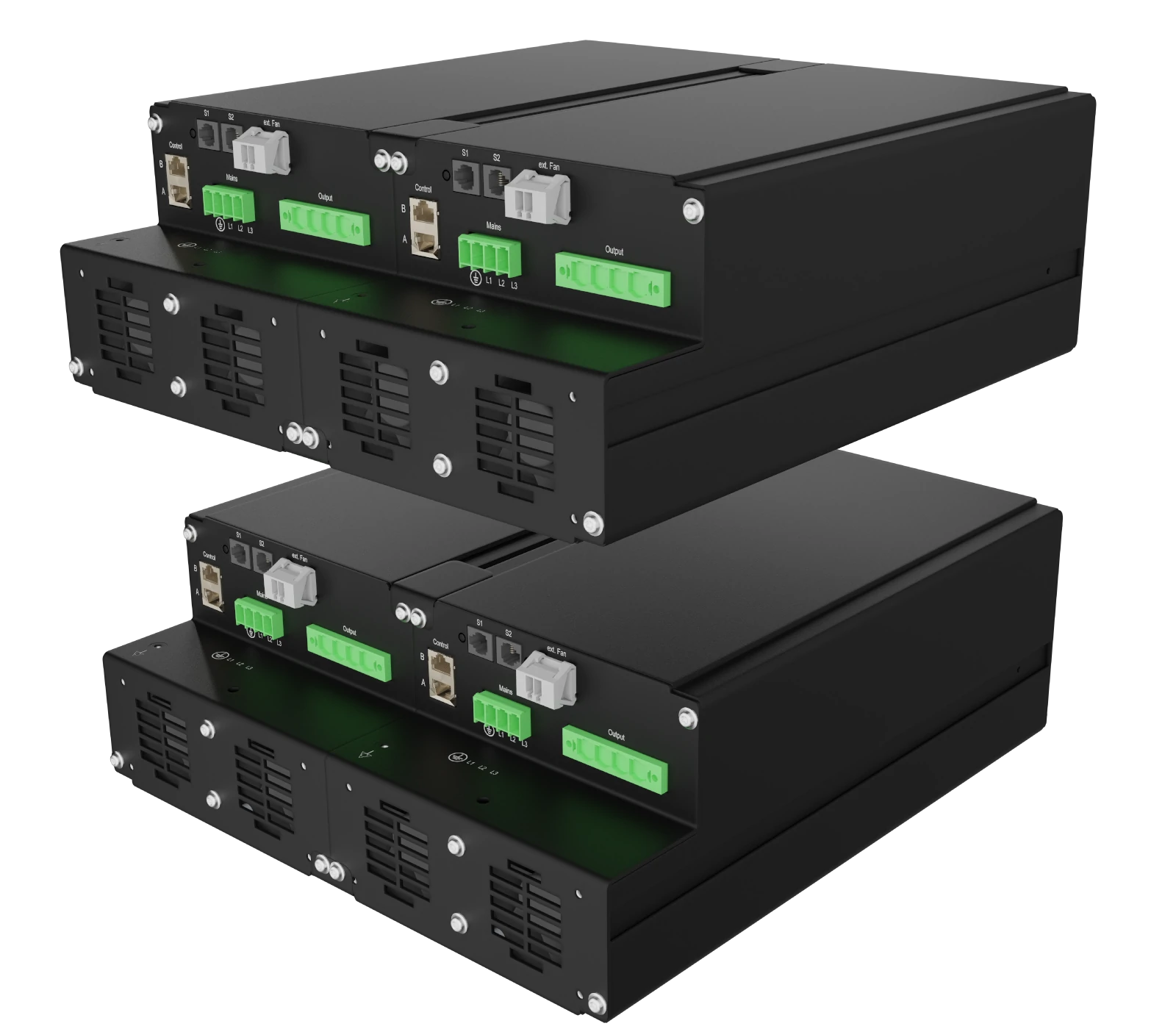

Synchrotec
Synchrotec allows several Modul Line X2 generators to be synchronized with each other. This enables induction-based parameters to be optimally matched to the cooking utensils used, regardless of the number of hobs. |
| Generator housing | Aluminum (anodized, black surface) |
| W x D x H | 177.5 x 372 x 137 mm (7.0 x 14.65 x 5.39 inch) |
| Supply V / Hz / PH | 380 - 440 / 50 - 60 / 3 |
| Power | 2 x 5000 Watts (max.) |
| Certifications |
![]() |
