MODUL LINE X2 WOK

Home
MODUL LINE X2 WOK

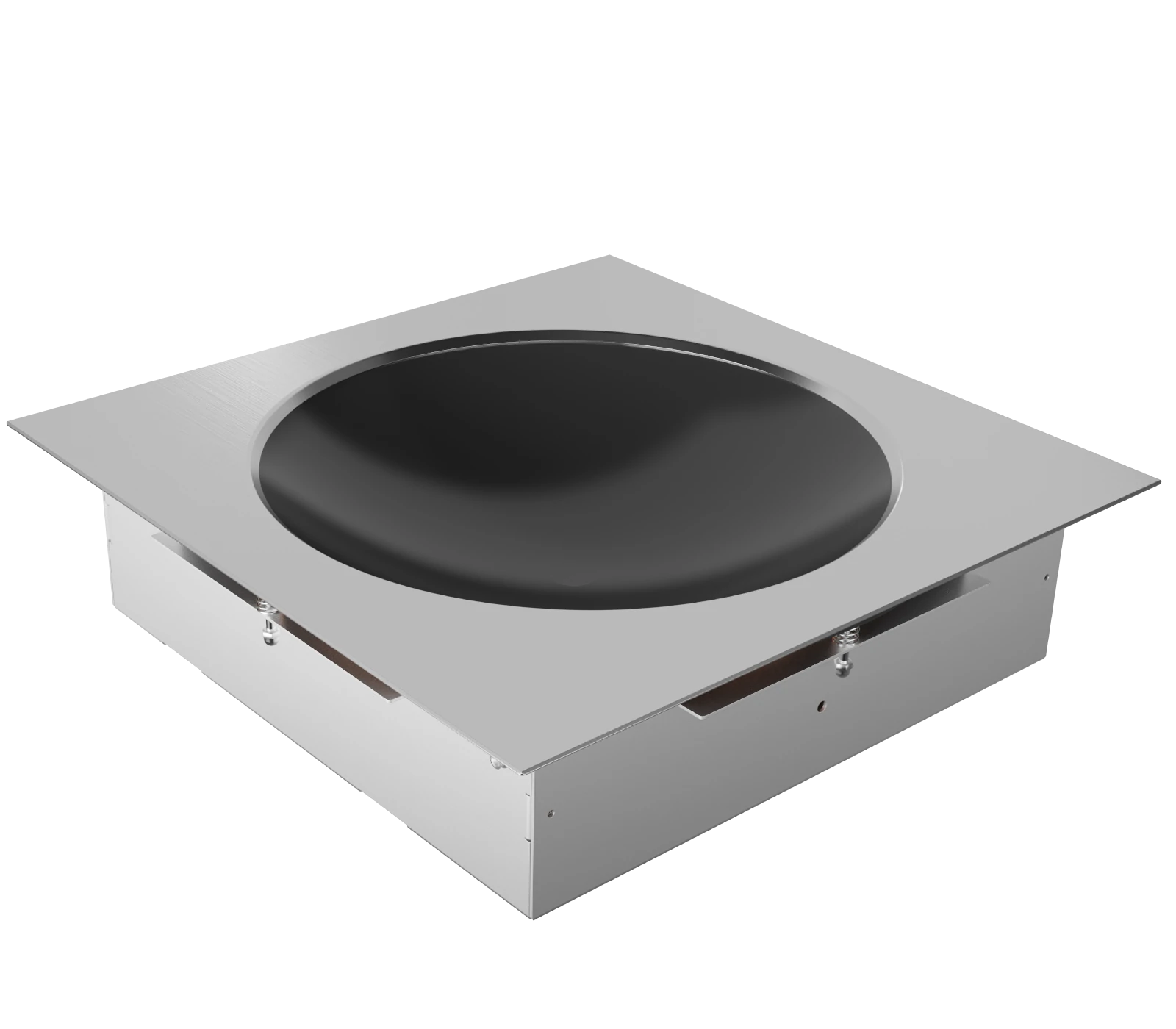

Spule Wok 1x MR

MODUL LINE X2 WOK

Induction

Modul Line X2 with a Wok coil

Features
Technical Specifications
Downloads

RTCSmp
Continuous temperature measurement at the bottom of the pan with our RTCSmp technology (Real Time Temperature Control System, multi-point)

Overheating protection
The reliable overheat protection for the cookware extends the lifespan of both the induction appliance and the cookware.

Constant power transfer
Constant power transfer throughout the entire cooking period for optimal results.

Direct heat transfer
Comfortable cooking without heating the kitchen environment thanks to direct heat transfer from the cooktop to the pan via induction. Particularly energy efficient and very short heat-up times.

Easy to clean
No burning of food residues on the Ceran® glass thanks to the cool surface.

Wide pan compatibility
Very wide pan compatibility thanks to innovative variable frequency.

Exceptionally robust
Exceptionally robust and developed for continuous use in food service operations

Power reduction
Option to easily reduce the maximum power output setting from 100 % to down to 25 %

12 power levels
12 power levels per cooking zone

Wok glass
Ø 300 mm Ceran® wok glass

Very fast pot / pan detection
Thanks to the fast pot / pan detection, the power output starts immediately when the pan is placed on the cooktop.

Warranty
Warranty: 2 years on parts

Connectivity
Extendable with a Modbus IoT interface to take full advantage of the Connectivity.

InnovativElectronicElements
The high efficiency of the InnovativeElectronicElements minimizes heat load on the electronics, significantly extending service life.

Synchrotec
Synchrotec allows several Modul Line X2 generators to be synchronized with each other. This enables induction-based parameters to be optimally matched to the cooking utensils used, regardless of the number of hobs.

MODUL LINE X2 WOK 1x5

Number of heating zones	1
Ceran glass surface W x D	Ø 11.8 inches / 300 mm Wok Ceran bowl
Inductor diameter	Ø inductor coil 9.84 inches / 250 mm
Generator housing	Aluminum (anodized, black surface)
Supply V / Hz / PH	380 - 440 / 50 - 60 / 3
Power	1 x 5000 Watts

W x D x H	7" x 14" x 5" 17.8 cm x 37.2 cm x 13.7 cm
Weight	12.1 lb 5.5 kg
Power Output	5000 Watts
Power Input Type	Electric
Certifications
